Automatic Barrier Access Steel All-in-One Vehicle Machine System Machine System Recognition License Plate Camera Parking Toll Gate

1 Set
MOQ
$2,598.00(>=1 Sets)
Price

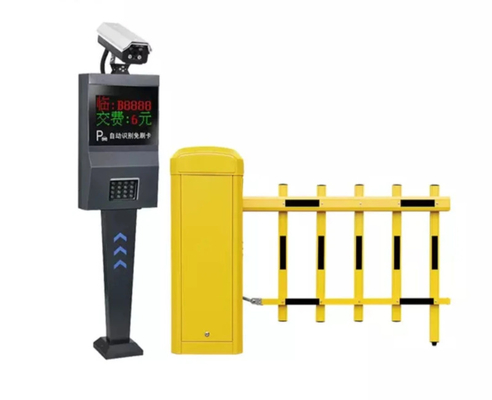

Automatic Barrier Access Steel All-in-One Vehicle Machine System Machine System Recognition License Plate Camera Parking Toll Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Carport
Model Number: ZT-210
Warranty: 12 Months
Product Name: Smart Car Parking System
Material: Steel
Certification: CE ISO9001
Recognition Rate: > 98%,
Recognition Speed: < 80 Km/h
Best Range: 3-12 M (defined By Lens Size)
Working Temperature: -30 ℃ -75 ℃
Power Consumption: 7W
TCP/IP Communications: 485
Voltage: 220 V /110V±10%
Basic Infomation
Certification: CE ISO9001
Model Number: ZT-210
Payment & Shipping Terms
Packaging Details: wooden case/carton
Supply Ability: 500 Set/Sets per Month
Product Description
Product Description
Automatic Recognition of License Plate Parking System
License Plate Recognition technology (License Plate Recognition, LPR) is based on the computer technology, image processing technology, and the fuzzy Recognition, to build the characteristics of the vehicle model, identify the vehicles' characteristic, such as Plate, model, color, etc. It can automatically extract the plate image from an image, it USES the advanced image processing technology, pattern recognition and artificial intelligence to the collected images information and processing, it can be identify the license plate Numbers, letters and Chinese characters, and directly given recognition result, makes the system become a reality.
Specification
Size
Display:150×200mm Face Display:150×200mm Total Size:1400×200×130mm
Details
IN/GND(AUDIO) OUT(AUDIO) NETWORK
Operating temperature
-25℃ ~+60℃, RH ≤90%
Related humidity
≥90%RH
Normal work life
Five years
Power supply
AC 220V/110V ±10% 50/60MHZ(optional)
Operating system
Win XP, Win7, Win8, Win10, 32/62 bits
Power interface
DC12V
Identification accuracy
>99%
Voice prompt
0.2 seconds
Feature:
1.Can identify vehicle license text and figures
2.Can identify one line and two lines license plate number
3.Can identify Chinese and English of license plate number
4.Can recognize 0-2 letters and numbers 1 to 4 for the license plate number
5.The database can store the capture image, license plate number, lane number and the time of vehicle through record.
6. License plate number entrance and exit record can report output
7.Support English, Korean, Simplified Chinese and Traditional Chinese and other language customizable.
8. Image size: 768*576pixels
9. Front size: 16*16-48*64 pixels
10. Camera gun level angle: the maximum angle 25 degree into the drive lane
11. Camera gun vertical angle: the maximum angle 25 degree into the horizontal
12. Minimum brightness: 500lux
Instructions
1.Vehicle Enter
①The vehicle enters the license plate camera capture area, triggering the camera capture.
②The license plate recognition system automatically captures the image of the vehicle and recognizes the license plate number,the vehicle category is then derived by searching the database.
③The display shows the car's validity(VIP car or monthly car)Or balance(Stored value car),welcome Indications etc.
④Voice playback about identified license plates,welcome Indications etc.
⑤If parking space is not full, the vehicle enter into it,the barrier release automatically,and the vehicle entry time is recorded. When cars crosses the entrance, the parking space display refreshes the parking space.The whole process is done automatically,no staff intervention required.The vehicle is always in motion,non stop

2. Vehicle Exit
①The vehicle enters the license plate camera capture area, triggering the camera capture.
②The license plate recognition system automatically captures the image of the vehicle and recognizes the license plate number,the vehicle category is then derived by searching the database.
③The display shows the car's validity(VIP car or monthly car)or balance(Stored value car).Amount charged(Temporary car),goodbye indications etc.
④Voice playback plate number and payment and goodbye indications etc.
⑤If the vehicle is a stationary vehicle,gate automatically open.The computer pulled the capture image of the car when it entered and admission time, etc.If it's temporary parking that the vehicle must be suspended for payment before leaving.If the vehicle in the blacklist, the gate will not be turned on, whether temporary or stationary, and the system will send out an alarm to alert the staff.
⑥Vehicles crossing the exit and leave the parking lot, the system records the departure time of the vehicle ,then the parking space screen refreshes the parking space.
Product Details
light Equipment
Founctions and Characteristics:
Application:
Our products are currently sold in more than 80 countries and regions around the world, and Our products are suitable for the parking lot in residential communities, enterprises and institutions, hotels, commercial buildings, government organizations, logistics company, hospitals, villages, shopping markets, and so on. The most important thing is that our products are excellent in quality, advanced in technology and favorable in price, and have been well praised by our customers.
Production process
Project show
Recommend Products
Company Profie
FAQ
1. What is the strength of your company in this industry?
We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure thegate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand ZENTO is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish
overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about quality control?
IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size, software and features.Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment. Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.T/T, PayPal, Alibaba Credit guarantee order8.
8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
9. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
10. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
If you require any further information,welcome to contact us at any time! We are in Zento waiting for you!
