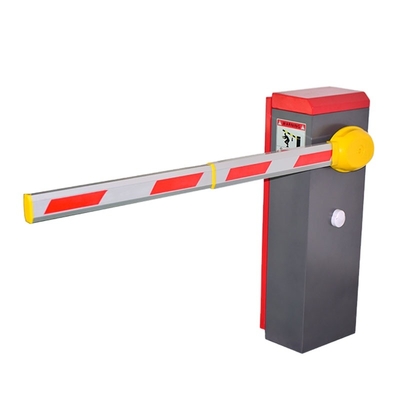

Road Guard Economical Barrier Gate For Entry And Exit Economical Security Barrier Gate

1 Set
MOQ
$200.00(1 - 9 Sets) $180.00(>=10 Sets)
Price
Road Guard Economical Barrier Gate For Entry And Exit Economical Security Barrier Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Economic Barrier Gate
Product Name: Economic Road Safety Equipment Barrier Gate For Entrance And Exit
Housing Color: Yellow/Red/Black/Orange(OEM)
MTBF: 5 Million Cycles
Certificate: ISO9001 CE
Housing Matercial: 2mm Cold-roller Sheet
Max Boom Length: 6m
Body Weight: 50kg
Arm Speed: 6s
Housing Painting: Powder Coating/ Lacquer That Bake
IP Grade: IP54
Basic Infomation
Certification: ISO9001 CE
Model Number: Economic Barrier Gate
Payment & Shipping Terms
Packaging Details: Housing size: length:34cm wide;29cm hight:109cm Package size: length:39cm wide;33cm hight:114cm 230set/container
Supply Ability: 5000 Set/Sets per Month
Product Description
Product Description

      Economic road safety equipment barrier gate for entrance and exit security

          Economic road safety equipment barrier gate for entrance and exit security also named as intelligent/electric vehicle road blocker, is a widely used machine in gate access control application.

       Economic road safety equipment barrier gate for entrance and exit security is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.

In addition, all parking system integration and/or installation company can more easily understand the important value of barrier gate for parking lots project. So how to choose a good quality and high cost-effective barrier gate is an important lesson for their manager and engineers.

Suitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc

Folding Automatice Barrier Gate

Voltage : 110v-220v±10%
Reted Power: 160W

Motor Type: AC Motor

Frequency: 220AC/ AC110 50-60HZ

MTBF: 5000000 cycles

IP Grade: IP54
Colour: OEM




              The left  folding arm

                                    The right folding arm

Function

               Economic road safety equipment barrier gate for entrance and exit security


1: Arm Auto Reverse
Built in smart collision detection technology allow arm to auto reverse when hit on obstacles during closing. Prevent further damage on vehicle.


2:Swing out mechanism

Arm swing out when hit directly by vehicle( only 1 second model) to avoid further damage on the vehicle.


3:Compressed Balance Spring

Barrier gate arm weight is counter-balanced via adjusted compression spring, avoid accidents caused by tension spring.



4:Photoelectronic Limit Switch


Multiple protection mechanism: phitoeletronic limit , motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safety.


5:Liberate Cushion

Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core.

Related Products
We have straight barrier gate, except that ,also have fence boom barrier gate and folding barrier gate.
We can do any size and colour if you want.
      Main Technology Parameters
Voltage
110v-220v±10%
Reted Power
85W
Motor Type
AC Motor
Frequency
220AC/ AC110 50-60HZ
IP Grade
IP 54
Main Technology Parameters
Voltage
110v-220v±10%
Reted Power
85W
Motor Type
AC Motor
Frequency
220AC/ AC110 50-60HZ
IP Grade
IP 54
Main Technology Parameters
Voltage
110v-220v±10%
Reted Power
85W
Motor Type
AC Motor
Frequency
220AC/ AC110 50-60HZ
IP Grade
IP 54
Packing & Delivery

Pcking: carton or wooden case(plywood if you want)

                   Housing size: length: 34cm wide : 29cm height: 94cm
                   Package size: length: 38cm wide : 33cm  height: 98cm
Certifications

We have  certificate about CE, ISO.

Company

                                           HeBei HaoKai intelligent technology Co.,Ltd.

                   HeBei HaoKai intelligent technology Co.,Ltd. is a professional engaged in gate system, intelligent parking lot Managment system and parking guidance system, channel management system, traffic facilities construction and installation of monitoring, a set of electronic product development, production, sales, installation services as one of the integrated enterprise.

             The company mainly engaged in Blurtooth remote system,card reader, intelligent parking lot system, gate and a series of electronic products. Over the years, the company has been in the neighboring provinves and cities to provide customers with more direct and more efficient and thoughtful Customer service .


Workshop
Our Service

1-Does the Economic road safety equipment barrier gate for entrance and exit security easy to install?
Yes,it is very simple,first,we have user manual to you,then we have engineer support you online, untill you finish the project.
2-How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language
3-How long is the delivery time?
For standard item,10-50 sets:3 working days,50-100 sets:5 working days,
200-500 sets:7-10 working days.For special item, or need custom design package or logo, need 3-5 working days longer
4-How about the payment terms?
TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.
5-Can you do OEM service?
Yes!
We can make colour and LOGO according to customer's requirement.
We can do "Personal Tailor"!
